What voltage and current range does the GIS High-Conductivity Conductors & Connection Assemblies cover?

Catalogue voltage range: 126kV ～ 1100kV; current range: Rated Current 2000A ～ 8000A (Peak 40,000A). Confirm the rating of the specific model and drawing.

Which standards are referenced?

Catalogue standard reference: IEC 62271-203 / GB/T 7674 / GB/T 5585. Request type-test evidence for the specific model.

Which applications is it used in?

GIS & GCB Gas-Insulated Switchgear.

Home Products GIS Cast / Welded EnclosuresGIS High-Conductivity Conductors & Connection Assemblies

GCA126kV ～ 1100kV

Review model drawings and test evidence

GIS Cast / Welded Enclosures

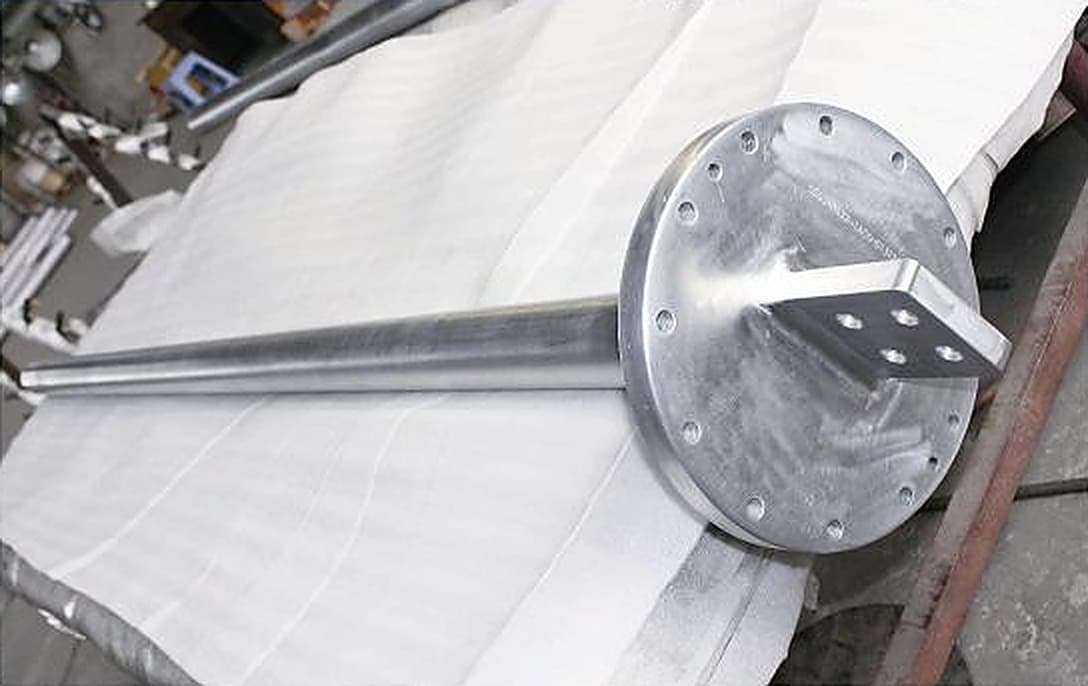

GIS High-Conductivity Conductors & Connection Assemblies

Q: What insulation or construction is used?

T2 Oxygen-Free Copper & 6101-T6 High-Conductivity Aluminum.

Silver-plated copper and electrical-grade aluminum conductors with electrostatic shield rings for high-current UHV busbars.

Rated Voltage126kV ～ 1100kV

Rated CurrentRated Current 2000A ～ 8000A (Peak 40,000A)

Insulation TypeT2 Oxygen-Free Copper & 6101-T6 High-Conductivity Aluminum

Catalog standardIEC 62271-203 / GB/T 7674 / GB/T 5585

PD requirementConfirm by model

Test evidenceRequest with RFQ

Buyer requirement checklist

Quote against approved manufacturing drawings and inspection criteria.

Drawing revision, dimensions, ports and flange interfaces
Alloy, casting/welding route and conductor requirements
Gas type, pressure and sealing surfaces
Leak, weld, dimensional and conductivity inspection plan

IEC 62271-203 addresses the complete AC GIS assembly; enclosure acceptance is drawing and project-specification specific.

Prepare Engineering Inquiry

Product Technical Overview

GIS internal conductors carry continuous rated load and heavy short-circuit currents inside SF6 coaxial enclosures. Produced from high-conductivity extruded aluminum alloy tubes (conductivity > 55% IACS) and electrolytic T2 copper bars with thick hard silver plating on contact surfaces, minimizing contact resistance and Joule heating.

Compatible Substation Apparatus

GIS Main Busbar & Feeder Internal ConductorsCircuit Breaker Moving & Fixed Contact StemsDisconnecting Switch Sliding Contact SystemsInsulating Operating Rod Mechanical Linkage Plates

Showing 6 of 6 models

Catalog values are representative. Confirm the selected model, drawings and test evidence during inquiry.IEC 62271-203 addresses the complete AC GIS assembly; enclosure acceptance is drawing and project-specification specific.

Parameter	Value
Rated Current	2000 A - 8000 A continuous (Up to 40,000 A generator class)
Short-Circuit Withstand	Peak Withstand Current (Ip) up to 200 kA, 3-second thermal (Ith) up to 80 kA
Conductor Material	Electrolytic T2 Copper (Conductivity >= 98% IACS) / 6101 Aluminum (> 55% IACS)
Contact Surface Plating	Thick hard silver plating (15 µm - 25 µm) with high wear resistance
Temperature Rise	<= 50 K at rated current (Significantly superior to IEC 65 K limit)
Shielding Contour	Large spherical spun contour to suppress electric field concentration

Custom Engineering & Flange Dimensions Note:

Dimensions, interfaces and replacement compatibility require approved drawings and technical review.

Engineering Inquiry Draft

Request Quotation for GIS High-Conductivity Conductors & Connection Assemblies

Enter your requirements and send them to our sales desk. If online sending is unavailable, you get an email draft instead.

GIS High-Conductivity Conductors & Connection Assemblies: FAQ

What voltage and current range does the GIS High-Conductivity Conductors & Connection Assemblies cover?: Catalogue voltage range: 126kV ～ 1100kV; current range: Rated Current 2000A ～ 8000A (Peak 40,000A). Confirm the rating of the specific model and drawing.
What insulation or construction is used?: T2 Oxygen-Free Copper & 6101-T6 High-Conductivity Aluminum.
Which standards are referenced?: Catalogue standard reference: IEC 62271-203 / GB/T 7674 / GB/T 5585. Request type-test evidence for the specific model.
Which applications is it used in?: GIS & GCB Gas-Insulated Switchgear.
