Production & Testing References
The images show winding, molding, machining and inspection stages. Check equipment, manufacturing site, test capability and accreditation scope for the offered model and supplier.
Condenser-core winding stage
The catalogue image illustrates winding equipment. Request the process plan and inspection records for the quoted model.

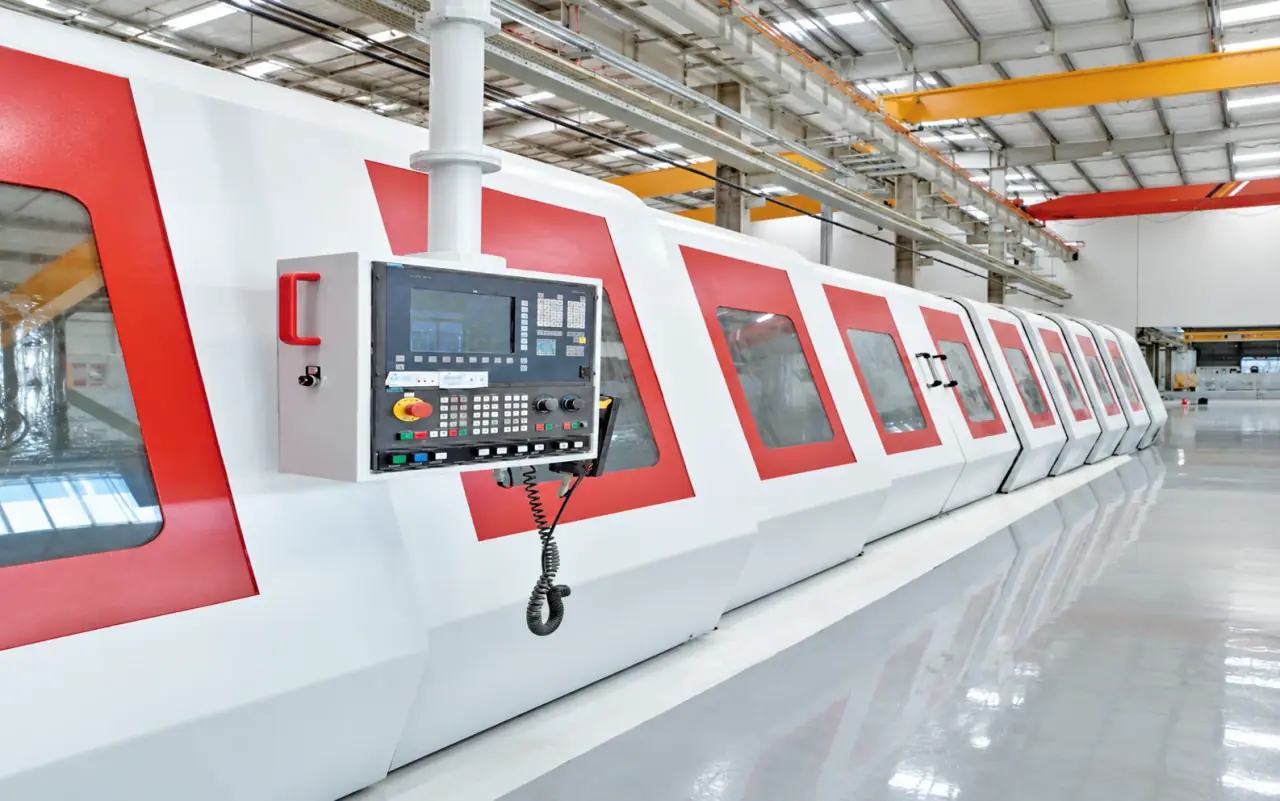

Precision machining stage
The image illustrates machining. Confirm material, mating surfaces and dimensional inspection for the specified part.
Silicone housing molding stage
The image illustrates silicone molding. Confirm bonding, surface quality and applicable tests for the selected design.

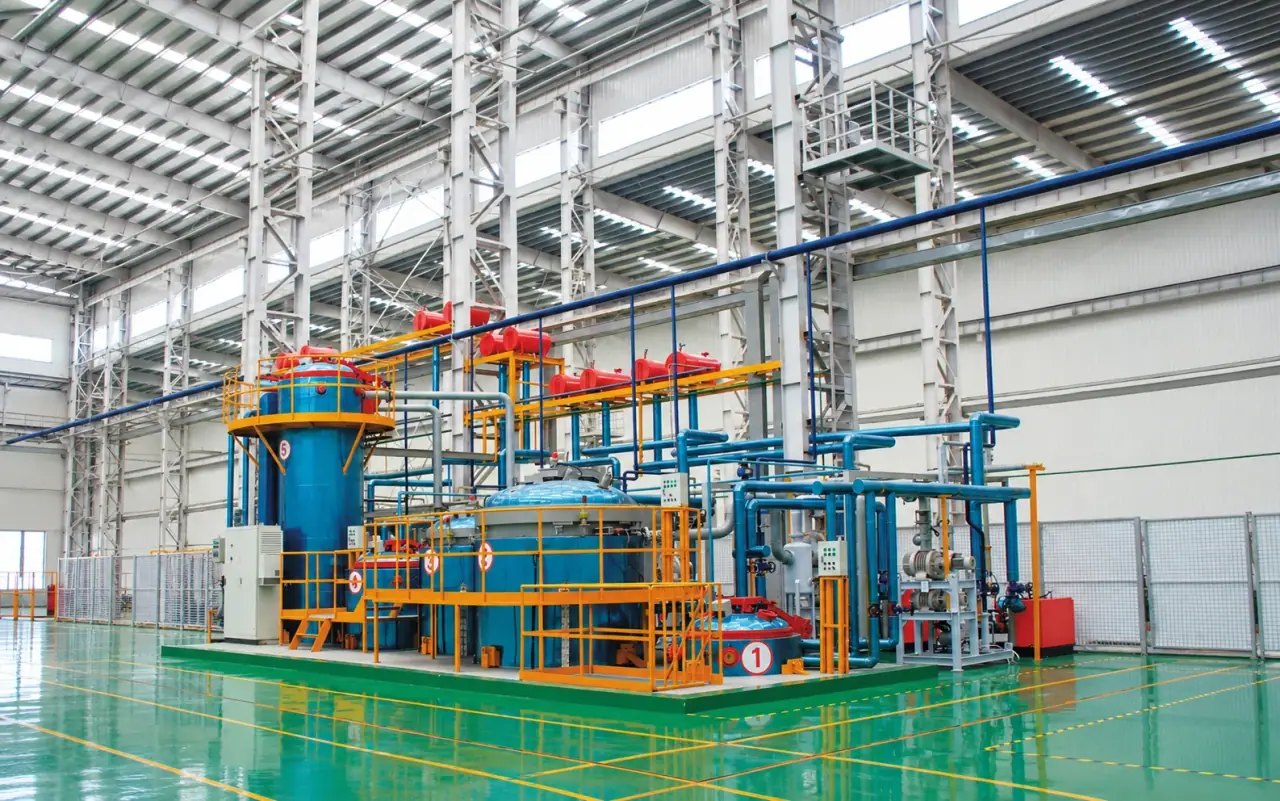

OIP bushing production stages
The supplier catalogue illustrates OIP core winding, vacuum impregnation and assembly stages; confirm the production and inspection scope for the quoted model.
High-voltage test equipment reference
The catalogue shows a high-voltage test setting. Request applicable type and routine test reports, laboratory identity and accreditation scope for the offered model.

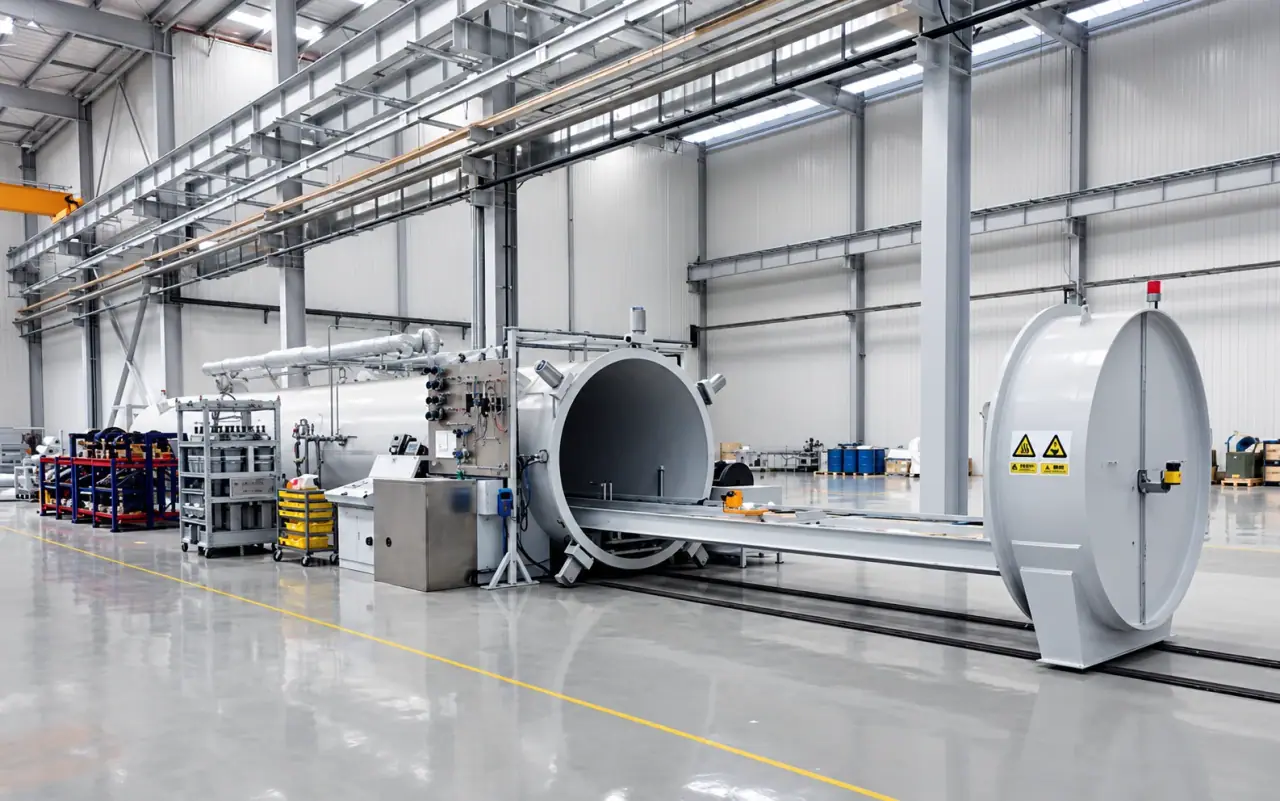

Leakage inspection equipment
The catalogue identifies leakage test equipment. Agree the test method and acceptance limit for the actual enclosure or insulator.
GIS enclosure welding stage
The image illustrates enclosure welding. Confirm material, weld specification, pressure boundary and nondestructive examination for the drawing.

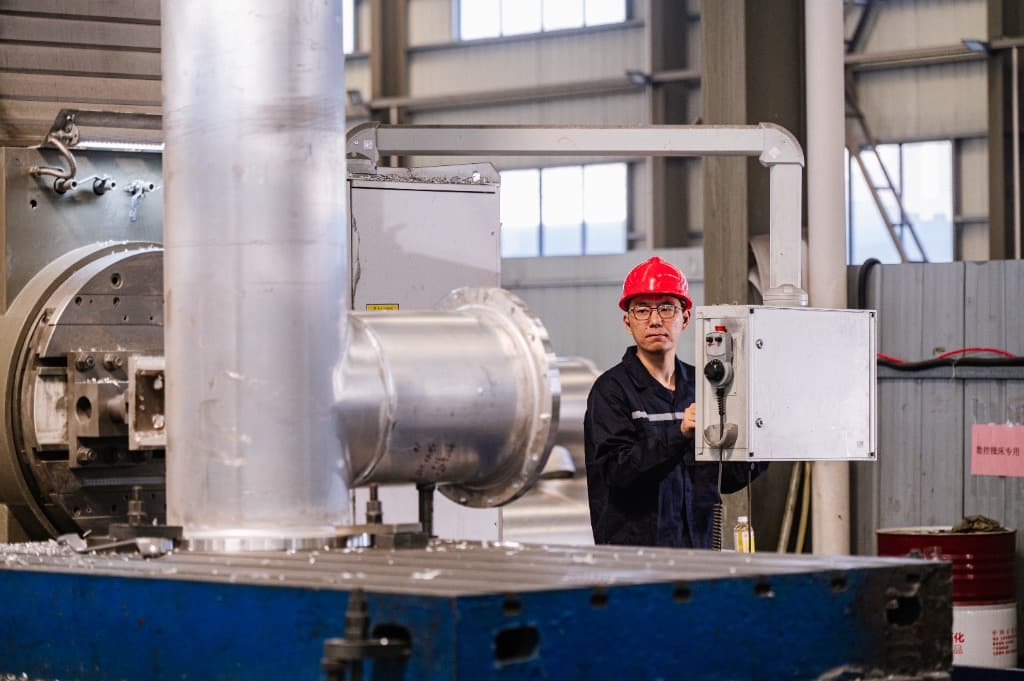

GIS flange machining stage
The image illustrates flange machining. Define groove dimensions, surface finish and leak-test acceptance in the approved inspection plan.

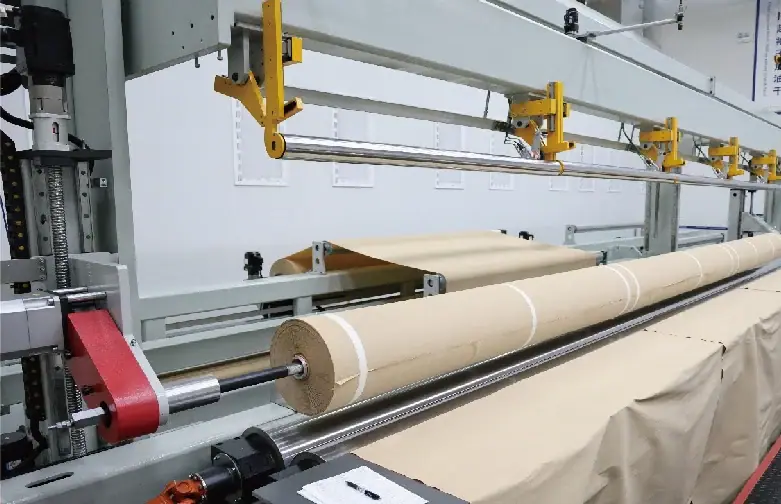

RIP condenser-core winding stage
The image illustrates RIP core winding. Confirm process and test records against the selected model.
Check Standards by Product Type
Standards cited in the technical data of our products. Ask for the applicable edition and the test reports for your model with your inquiry.
