What voltage and current range does the GIS Castings & Enclosures cover?

Catalogue voltage range: Subject to design; current range: Project-specific. Confirm the rating of the specific model and drawing.

What insulation or construction is used?

Aluminum alloy casting subject to design requirements.

Which standards are referenced?

Catalogue standard reference: Customer drawings & technical specifications. Request type-test evidence for the specific model.

Which applications is it used in?

GIS & GCB Gas-Insulated Switchgear.

Home Products GIS Cast / Welded EnclosuresGIS Castings & Enclosures

GCESubject to design

Built to customer drawings and technical specifications

GIS Cast / Welded Enclosures

GIS Castings & Enclosures

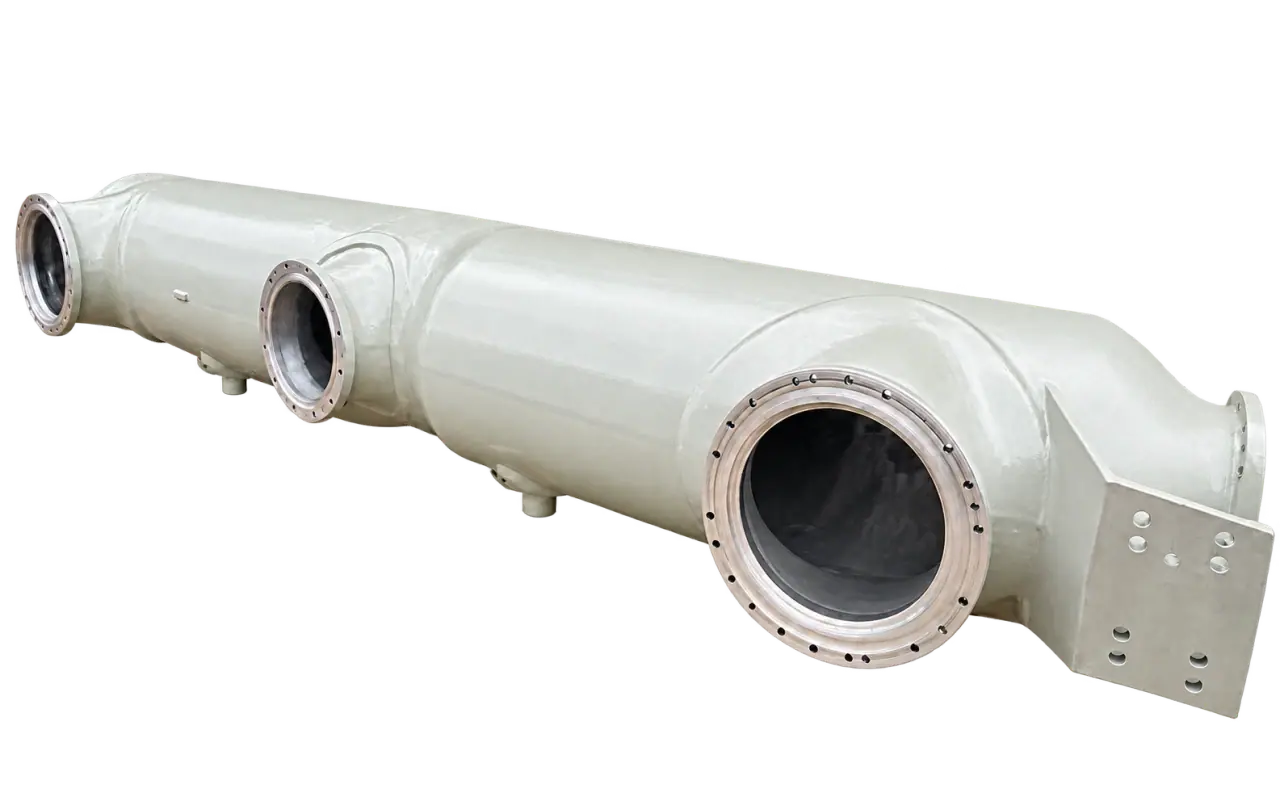

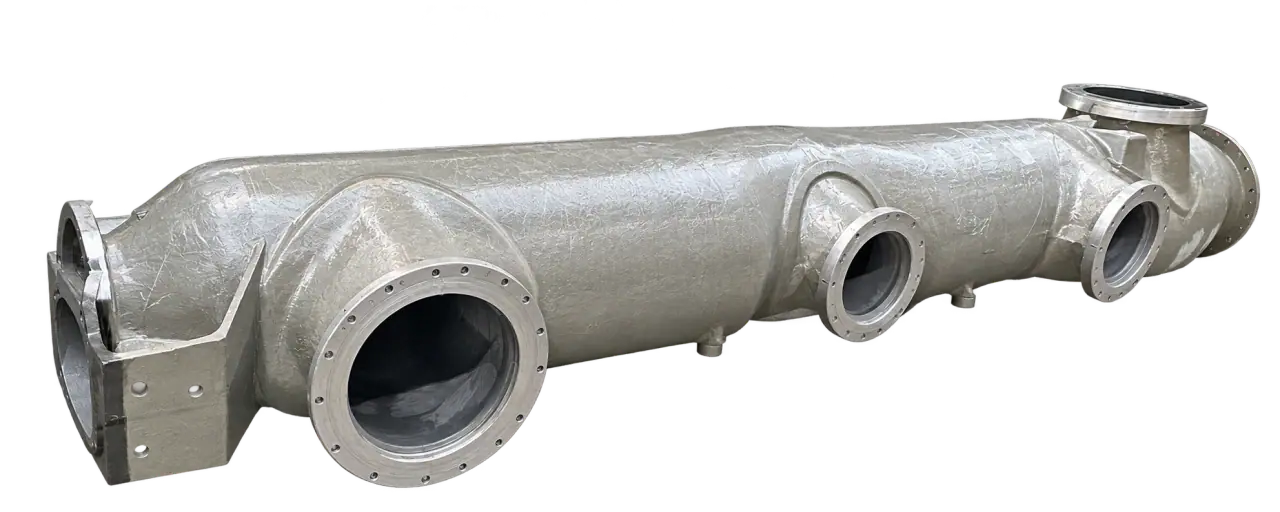

Customized aluminum alloy cast housings and components for Gas-Insulated Switchgear (GIS), manufactured to customer drawings and technical specifications.

Voltage RangeSubject to design

Design BasisCustomer drawings & specifications

ConfigurationsCast aluminum housings & multi-port structures

InterfacesPrecision-machined flanges

Materials & CastingAluminum alloy casting subject to design

Quality SupportInspection & technical documentation

Buyer requirement checklist

Quote against approved manufacturing drawings and inspection criteria.

Drawing revision, dimensions, ports and flange interfaces
Alloy, casting/welding route and conductor requirements
Gas type, pressure and sealing surfaces
Leak, weld, dimensional and conductivity inspection plan

IEC 62271-203 addresses the complete AC GIS assembly; enclosure acceptance is drawing and project-specification specific.

Discuss drawings & requirements

Product Overview

GIS Castings & Enclosures Eonova supplies high-quality cast housings and components for Gas-Insulated Switchgear (GIS) applications. Manufactured to meet customer-specific drawings and technical specifications, these components are designed to provide reliable structural support, mechanical strength, and dimensional accuracy for high-voltage electrical equipment. We work with qualified Chinese manufacturers to support customized sourcing requirements, including aluminum alloy castings, complex enclosure structures, precision machining, and various flange configurations. Key Features: - Customized designs based on customer drawings and specifications - Aluminum alloy castings and complex housing structures - Precision-machined surfaces and flange connections - Suitable for various GIS configurations and voltage classes, subject to design requirements - Technical documentation and quality inspection support

Custom Sourcing SupportInquire Now

EONOVA – Your Sourcing Partner for GIS Components from China. Share your drawings and technical specifications so that aluminum alloy casting, complex enclosure structures, precision machining, and inspection requirements can be coordinated with qualified manufacturing partners.

Target Applications

Gas-Insulated Switchgear (GIS)Circuit Breakers and Disconnector HousingsInstrument Transformer & Busbar Cast Enclosures

Showing 7 of 7 models

Drawing-based configuration, materials and inspection are agreed for each project.

Parameter	Value
Voltage Range	Subject to design requirements
Product Name	GIS Castings & Enclosures / GIS
Design Basis	Customer drawings and technical specifications
Configurations	Cast aluminum housings, multi-port structures & complex enclosures /
Connection Interfaces	Precision-machined surfaces and flange connections /
Materials and Casting	Aluminum alloy castings subject to design requirements
Quality Support	Quality inspection and technical documentation

Drawing confirmation:

Enclosure dimensions, openings, flange interfaces, materials, welding and inspection requirements are confirmed against customer drawings and technical specifications.

Drawing & Technical Review

Request Quotation for GIS Castings & Enclosures

Prepare your enclosure drawings and technical specifications so the configuration, manufacturing approach and quotation can be confirmed.

GIS Castings & Enclosures: FAQ

What voltage and current range does the GIS Castings & Enclosures cover?: Catalogue voltage range: Subject to design; current range: Project-specific. Confirm the rating of the specific model and drawing.
What insulation or construction is used?: Aluminum alloy casting subject to design requirements.
Which standards are referenced?: Catalogue standard reference: Customer drawings & technical specifications. Request type-test evidence for the specific model.
Which applications is it used in?: GIS & GCB Gas-Insulated Switchgear.
