GIS Insulation Tubes and Operating Rods: Drawing and Test Review
Review material, mechanical duty, insulation clearance, connection drawings and qualification tests for GIS insulating tubes and rods.
Selection note: use this guide to compare technical requirements. Confirm catalog ranges, typical values and standard clauses against the model, edition and agreed test conditions; project acceptance follows the approved drawings and technical agreement.
On this page
- 01When should switchgear designers choose Fiberglass, Aramid Fiber or Polyester Fiber?
- 02How should PD acceptance be set for slotted and flanged GIS insulation tubes?
- 03How do insulating operating rods survive 10,000 high-speed Class M2 breaker operations?
- 04What customization options and quality tests should OEM buyers specify?
- 05Frequently asked questions
- 06Standards & sources
In short
Select tube reinforcement and rod construction by mechanical duty, gas environment and mating interfaces; agree test conditions for the exact part.
- Agree partial-discharge test conditions and acceptance limits for each GIS insulating part; inspect void control and surface quality for the specified design.
- Aramid fiber reinforcement offers higher specific modulus and impact toughness for high-speed circuit breaker rods; E-glass and polyester fibers match static and arc-exposed cylinders.
- Cycloaliphatic epoxy plus optional anti-arc polyurethane/epoxy surface painting protects against corrosive HF and SO2 gases formed during short-circuit interruption.
- Specify the end-fitting retention method and dynamic pull-load acceptance test for the proposed rod; do not infer a universal load rating.
- 5-axis CNC machining holds +/-0.05 mm tolerance on exhaust windows, raceway slots, ribbed collars and mirror-turned end flanges.
For each tube or rod, supply the approved drawing, operating loads, insulation duty and acceptance tests; GIS assembly standards do not replace component criteria.
01When should switchgear designers choose Fiberglass, Aramid Fiber or Polyester Fiber?
Each fiber family serves a distinct mechanical and chemical regime in SF6 switchgear. Electrical-grade E-glass provides high compressive and flexural stiffness at an economical cost for busbar and capacitor support cylinders; aramid fiber (Kevlar) delivers ultra-high specific tensile strength, low density and superior fatigue damping for high-speed circuit breaker operating rods; and polyester or aramid surface layers protect against hydrofluoric acid (HF) attack near the arcing chamber.
Compare glass, aramid and polyester reinforcement against the specified compression, tension, fatigue and gas-exposure duty; confirm the proposed laminate by drawing and test data.
- Electrical E-Glass + Epoxy: high rigidity, low thermal expansion, ideal for 110 kV to 800 kV structural insulation tubes.
- Check the proposed material and fiber layup against the load direction.
- Polyester / Hybrid Barrier Layers: superior resistance to fluorinated arc decomposition products in breaker interrupter tubes.
02How should PD acceptance be set for slotted and flanged GIS insulation tubes?
Set the voltage, gas condition, electrode arrangement and PD limit for the machined tube assembly; assess slot edges and bonded flanges in the same configuration.
Record the as-machined slot and flange dimensions, surface finish and PD result for the approved design.
| Specification Item | GIS Insulation Tube (HIT Series) | Insulating Operating Rod (IOR Series) |
|---|---|---|
| Rated Voltage Range | 110 kV to 800 kV | 110 kV to 1100 kV |
| Fiber Reinforcement | Fiberglass, Aramid, or Polyester Fiber | Continuous Aramid (Kevlar) or E-Glass (>70% vol) |
| Resin Matrix & Finish | Cycloaliphatic epoxy; painted or unpainted finish | High-Tg vacuum-impregnated epoxy matrix |
| Key Mechanical Rating | High hoop, cantilever & torsional rigidity | Tensile strength >= 1200 MPa (up to 180 kN break) |
| Mechanical Endurance / Tolerance | CNC slots, collars & flanges within +/-0.05 mm | >= 10,000 operations (IEC 62271-100 Class M2) |
| Partial Discharge / Dielectric | Agree voltage point and PD limit by part | >= 12 kV/cm tangential withstand in SF6 |
| End Connection Interface | Bonded aluminum or stainless steel flanges | Forged stainless/alloy stud, fork or toothed gear |
| Applicable Standards | IEC 62271-203, GB/T 7674, DL/T 555 | IEC 62271-100, DL/T 1424, GB/T 1984 |

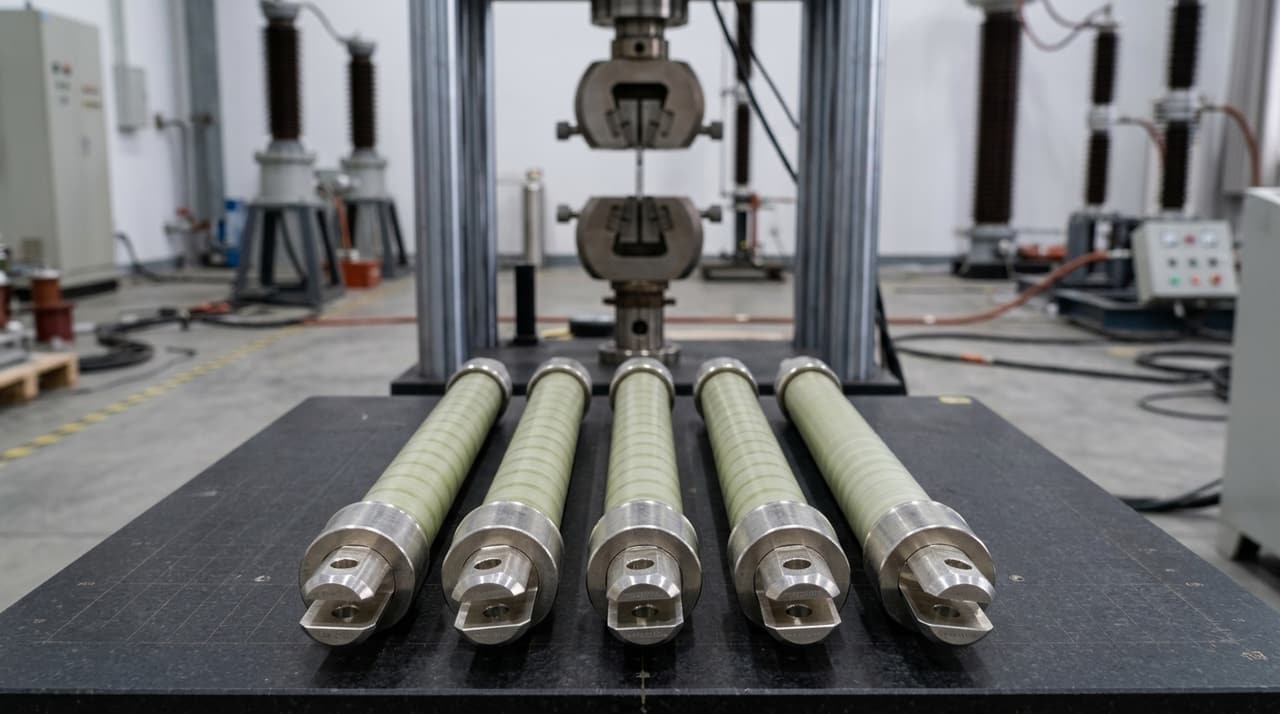

03How do insulating operating rods survive 10,000 high-speed Class M2 breaker operations?
Rod endurance depends on the fiber layup, end-fitting retention and the breaker motion profile. Review the complete rod assembly under the specified operating loads and cycle test.
Composite rods may reduce moving mass relative to metal links. Calculate actuator energy, end-fitting loads and endurance tests for the actual assembly.
“Buyer check: specify material, electrical duty, rod loads and end-fitting tests on the drawing.”
04What customization options and quality tests should OEM buyers specify?
Switchgear OEMs should specify the fiber reinforcement system (E-glass, aramid or polyester), surface finish (painted anti-arc coating vs unpainted natural finish), CNC dimensional tolerances (+/-0.05 mm on mating spigots), axial tensile and cantilever proof loads, and routine partial discharge limit (<= 0.5 pC at 1.2 Um/sqrt(3)) per DL/T 1424 and IEC 62271-203.
Provide the final drawing revision, fiber/resin choice, end-fitting details and acceptance tests; ask for dimensional, mechanical and dielectric records by part.
Applicable EONOVA Equipment
Conclusion
Approve the fiber, geometry, end fittings and tests for the actual tube or rod; request measurements on the finished part.
Talk to an EONOVA engineerFrequently Asked Questions
Why are some GIS insulation tubes supplied painted while others are unpainted?
+
Painted insulation tubes use a specialized anti-arc polyurethane or epoxy topcoat that increases surface resistance against SF6 arc decomposition byproducts (HF and SO2) and seals machined fiber edges in interrupter chambers. Unpainted tubes are preferred where the OEM applies its own surface treatment or where the tube operates in a clean, non-arcing busbar or capacitor compartment.
How does the quoted supplier prevent metal end fittings from pulling off an operating rod during breaker tripping?
+
Review the end-fitting geometry, bonding or mechanical retention method and dynamic pull-load test for the proposed rod; accept only against the agreed drawing and load.
Can the quoted supplier machine complex side windows, slots and threaded inserts into composite tubes?
+
Complex windows and inserts require a drawing review. Specify edge radii, minimum wall, insert retention and post-machining inspection before confirming feasibility.
Standards & Sources
- [1]IEC 62271-203: Gas-insulated metal-enclosed switchgear for rated voltages above 52 kV
International Electrotechnical Commission (TC 17)
Supports: Internal insulation dielectric withstand and partial discharge limits inside SF6 enclosures.
- [2]IEC 62271-100: High-voltage switchgear and controlgear: Alternating-current circuit-breakers
International Electrotechnical Commission (TC 17)
Supports: Class M2 mechanical endurance (10,000 operating cycles) and short-circuit switching duties.
- [3]DL/T 1424: Technical specification for insulating operating rods of GIS and circuit breakers
National Energy Administration (China)
Supports: Material, mechanical pull-out, water diffusion and PD acceptance criteria for operating rods.
- [4]IEC 60270: High-voltage test techniques: Partial discharge measurements
International Electrotechnical Commission (TC 42)
Supports: Sub-pC partial discharge screening methodology for solid GIS insulation components.
