Insulating Operating Rods

110kV-1100kV High-Voltage Insulating Operating Rods for Electrical Switching Equipment & Circuit Breakers

Rated Voltage110kV ～ 1100kV

Rated CurrentDynamic Impact Load > 150kN

Insulation TypeAramid Fiber & Fiberglass High-Strength Composite

Catalog standardIEC 62271-100 / DL/T 1424 / GB/T 1984

PD requirementConfirm by model

Test evidenceRequest with RFQ

Buyer requirement checklist

Review dielectric duty, mechanical motion and mating interfaces together.

Cylinder or rod drawing, ID/OD and overall length
End fittings, push-pull/torsion load and stroke
Gas environment, voltage and dielectric requirements
Inspection and acceptance plan for the assembly

IEC 62271-203 covers complete AC GIS assemblies above 52 kV; component tests and acceptance must be agreed in the drawing.

GIS tubes and rods catalog (PDF)

Prepare Engineering Inquiry View product document (PDF)

Product Technical Overview

Insulating Operating Rods EONOVA supplies high-voltage insulating operating rods designed for electrical switching equipment. Manufactured using aramid fiber or fiberglass materials, these rods combine electrical insulation with mechanical strength to support reliable operation in high-voltage applications. The rods feature a lightweight composite structure and metal end fittings, providing a practical solution for equipment manufacturers seeking customized insulating components for their switching systems. Key Features: • Available in aramid fiber and fiberglass materials • High-voltage insulation design • Lightweight composite construction • Metal end fittings for mechanical connection • Customizable dimensions and end-fitting configurations, subject to technical requirements

// CUSTOM SOURCING & ENGINEERING SPECInquire Now

EONOVA supplies custom-tailored insulating operating rods with customizable dimensions, coupling interfaces, and load ratings based on customer drawings and technical requirements. EONOVA – Your Sourcing Partner for High-Voltage Insulation Components from China.

Compatible Substation Apparatus

High-voltage circuit breakersHigh-voltage switching equipmentCustomized electrical insulation assembliesDisconnectors and earthing switch operating mechanisms

Catalog document (PDF)

Check the document model and revision; final dimensions require approved drawings.

View PDF

Showing 8 of 8 models

Catalog values are representative. Confirm the selected model, drawings and test evidence during inquiry.IEC 62271-203 covers complete AC GIS assemblies above 52 kV; component tests and acceptance must be agreed in the drawing.

Parameter	Specification
Rated Voltage	110 kV ～ 1100 kV (As specified in product catalog)
Reinforcing Material	Aramid Fiber (Kevlar) & Fiberglass composite
Tensile Breaking Strength	≥ 1200 MPa (tested breaking force up to 180 kN)
Mechanical Endurance	≥ 10,000 mechanical operations (M2 class compliance)

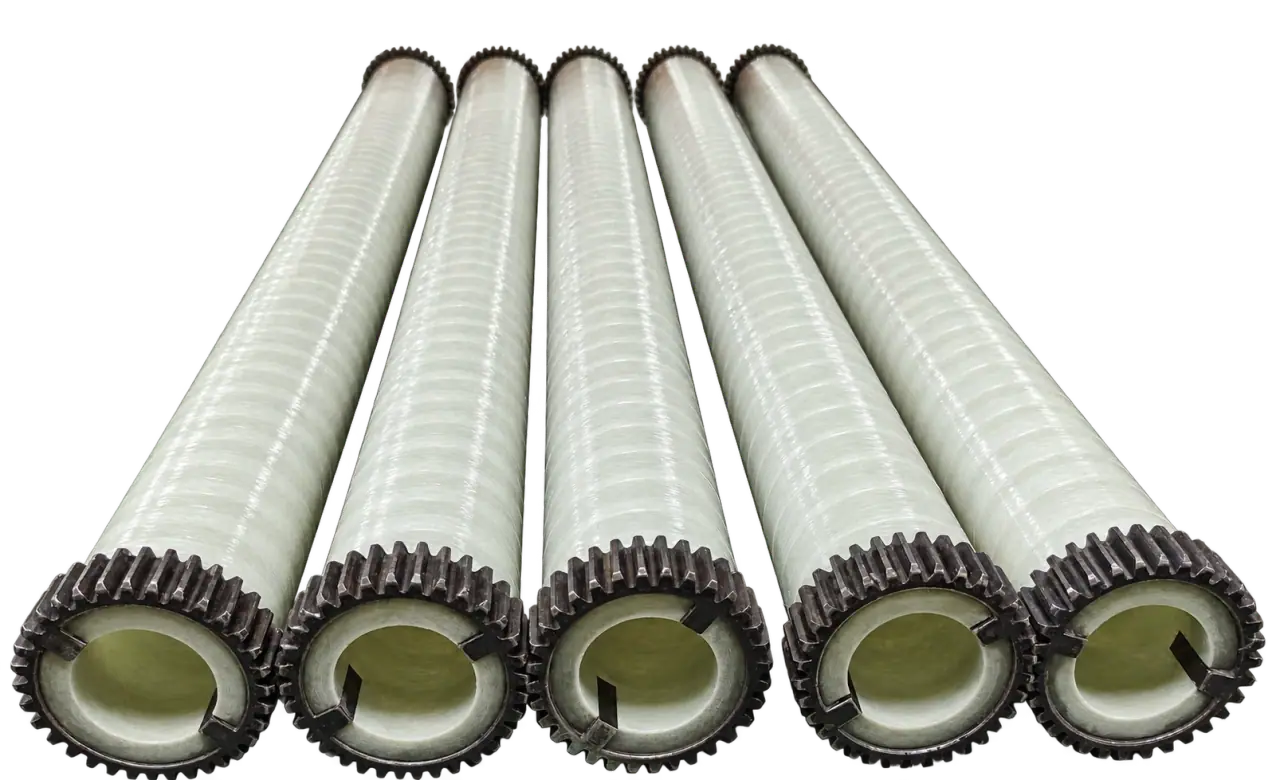

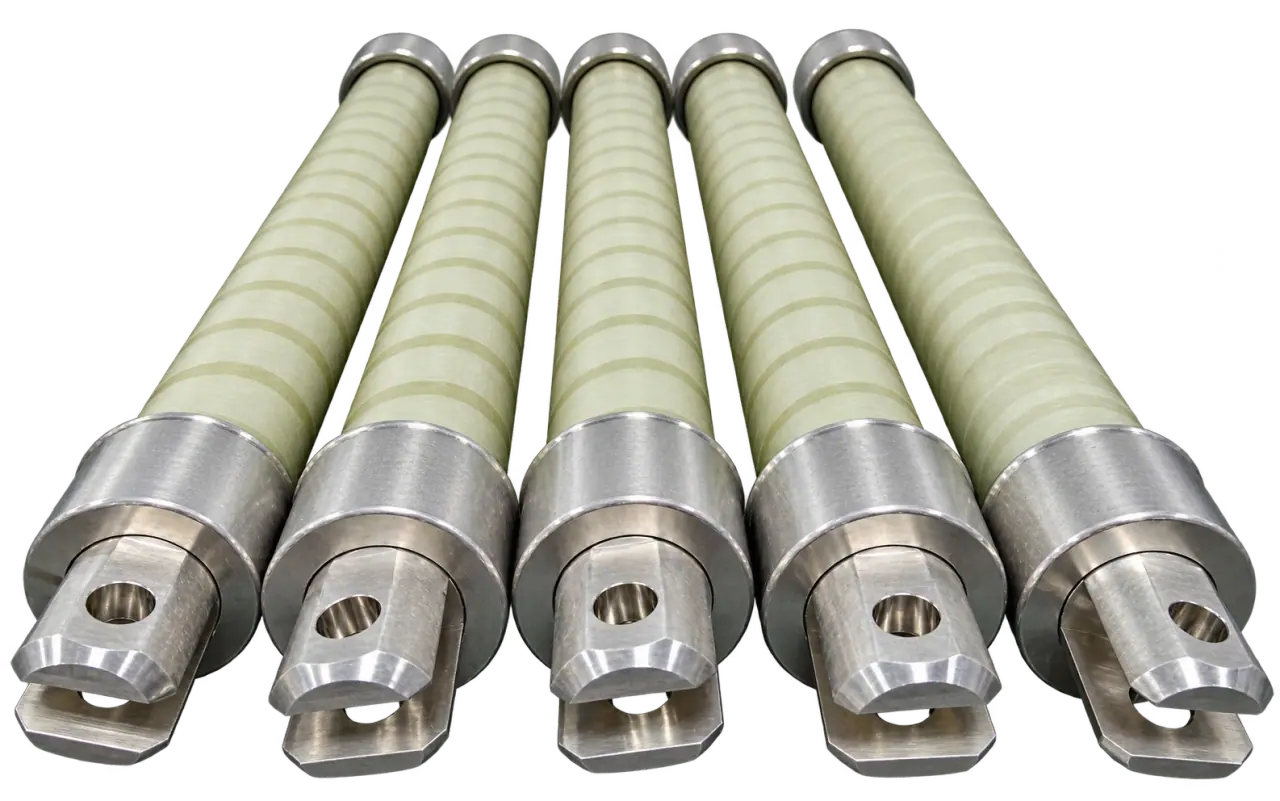

End Fitting Configuration	Forged stainless steel / aluminum, threaded, fork joint, or toothed gear
Dielectric Strength	≥ 12 kV/cm in SF6 gas
Weight Reduction	> 60% reduction in operating mass and inertia
Standard Compliance	IEC 62271-100, DL/T 1424, GB/T 1984

Custom Engineering & Flange Dimensions Note:

Dimensions, interfaces and replacement compatibility require approved drawings and technical review.

Engineering Inquiry Draft

Request Quotation for Insulating Operating Rods

Enter your requirements and send them to our sales desk. If online sending is unavailable, you get an email draft instead.

Insulating Operating Rods: FAQ

What voltage and current range does the Insulating Operating Rods cover?: Catalogue voltage range: 110kV ～ 1100kV; current range: Dynamic Impact Load > 150kN. Confirm the rating of the specific model and drawing.
What insulation or construction is used?: Aramid Fiber & Fiberglass High-Strength Composite.
Which standards are referenced?: Catalogue standard reference: IEC 62271-100 / DL/T 1424 / GB/T 1984. Request type-test evidence for the specific model.
Which applications is it used in?: GIS & GCB Gas-Insulated Switchgear; Circuit Breakers, CT/VT & Surge Arresters.
Is a product catalogue available?: Yes. GIS Insulation Tube & Rod Catalog.pdf can be downloaded from this page.
